WS7.5CI

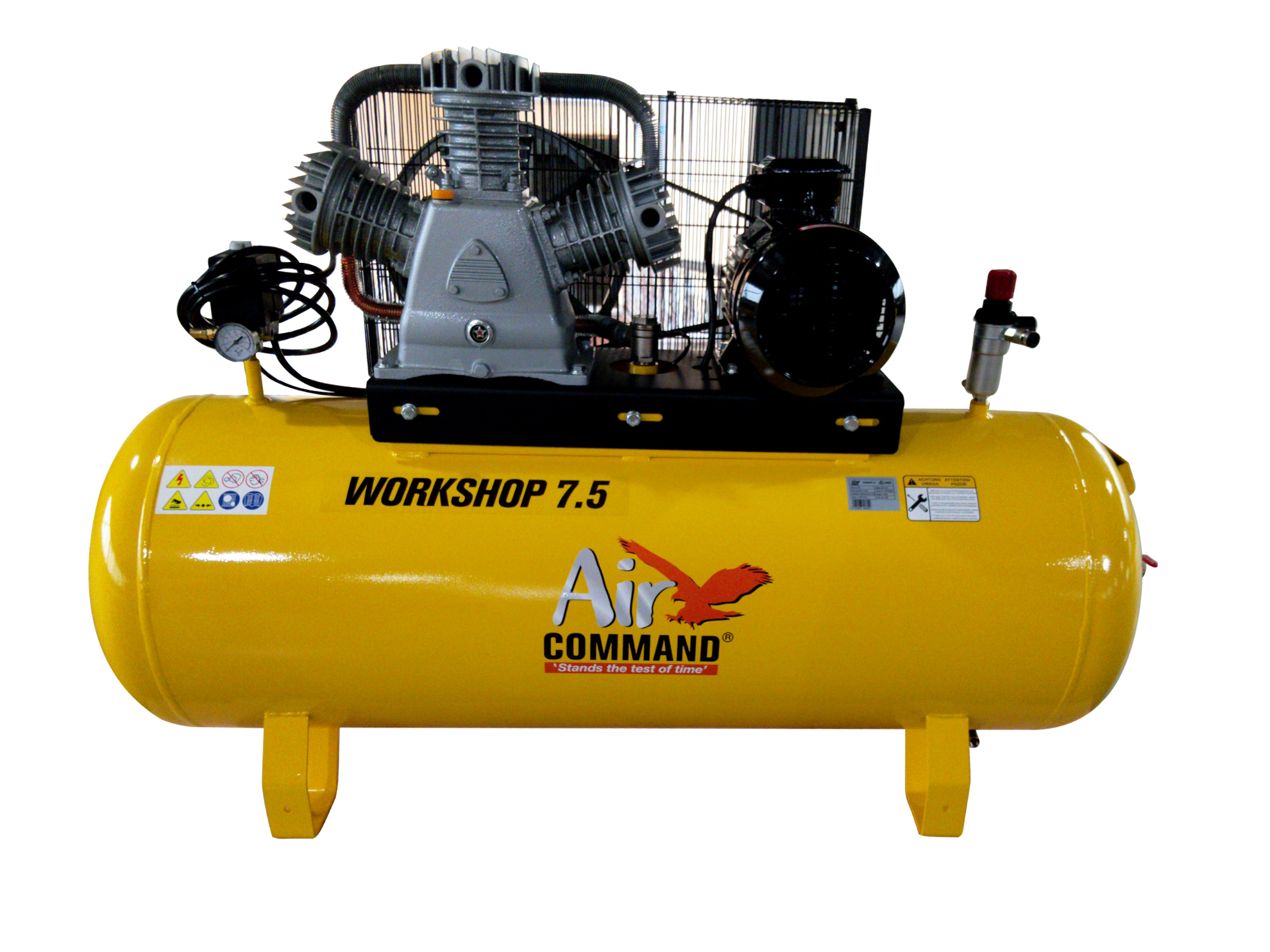

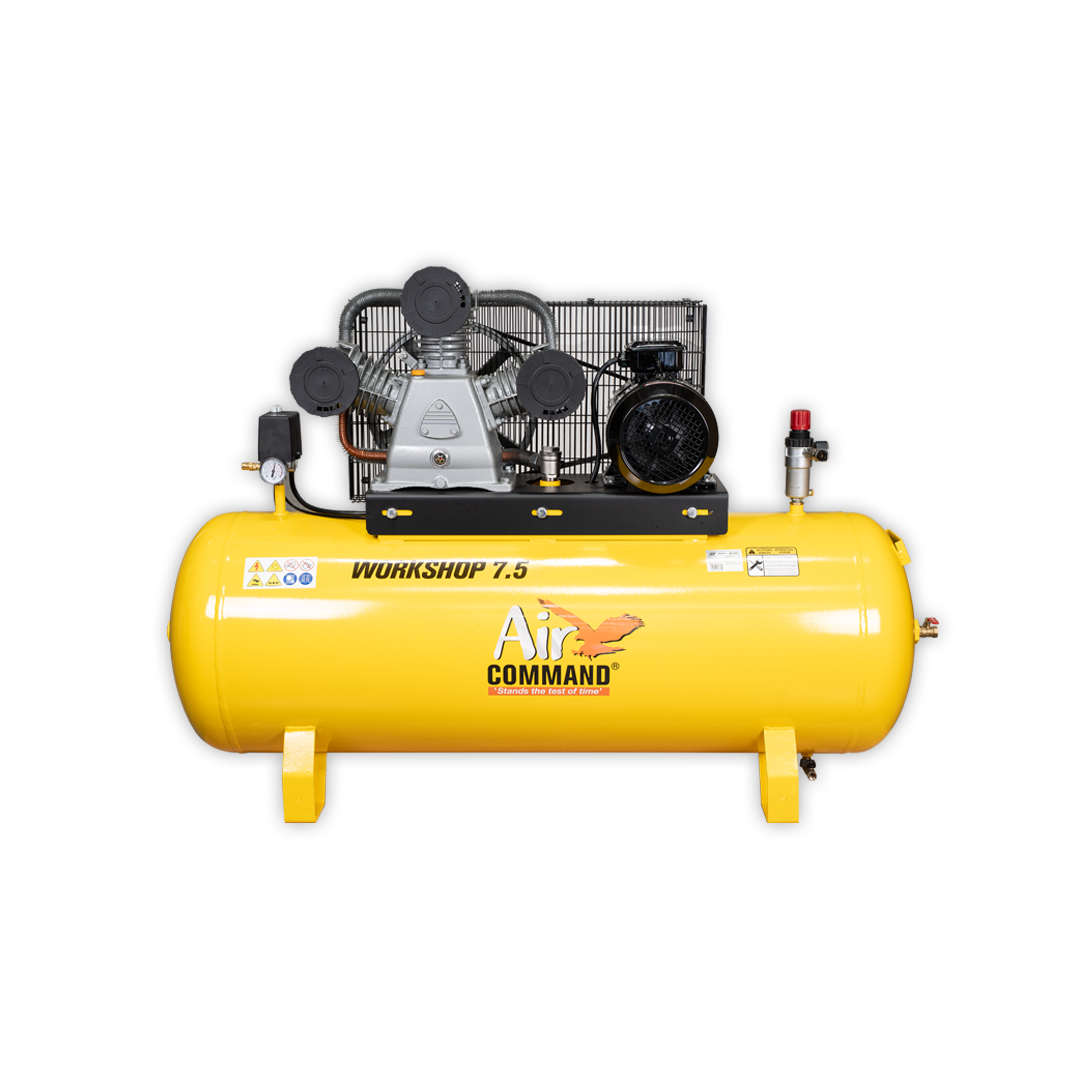

7.5HP 300L Three-Phase Workshop Air Compressor 400V

Massive 7.5HP Motor – 900 L/min (34 CFM) pump displacement for maximum air power.
Exceptional Output – 550 L/min FAD at 145 PSI for running multiple tools at once.
300L Tank – Huge reserve for long, uninterrupted operation.
Slow-Revving 3-Cylinder Pump – Cooler running, longer-lasting durability.
Versatile Air Access – Built-in filter/regulator with quick-connectors & ½" outlet ball valve.
3ph 400V 16A Power Supply Requirements

Motor: 5.5kW / 7.5HP 3 Phase 400V IE2

Receiver Size: 300L

Pump Displacement 900L/min, 34cfm

Maximum Working Pressure: 10bar / 145PSI

Attribute name	Attribute value
Dimensions	160 x 50 x 107cm (L x W x H)
Weight	229kg
Pump Type	V' 3 Cylinder Cast Iron Single Stage
Motor:	5.5kW / 7.5HP 3 Phase 400V IE2
Receiver Size:	300L
Power Supply Requirement	400V 3 Phase 16A
Pump Displacement	900L/min, 34cfm
FAD @ Working Pressure	550L/min
Maximum Working Pressure:	10bar / 145PSI
Pump Speed:	950 RPM
Duty Cycle	60%
Drive Belt Specification:	A1600
Receiver End Port Thread Size:	G 1/2"
Sound Pressure Level	80dBA
