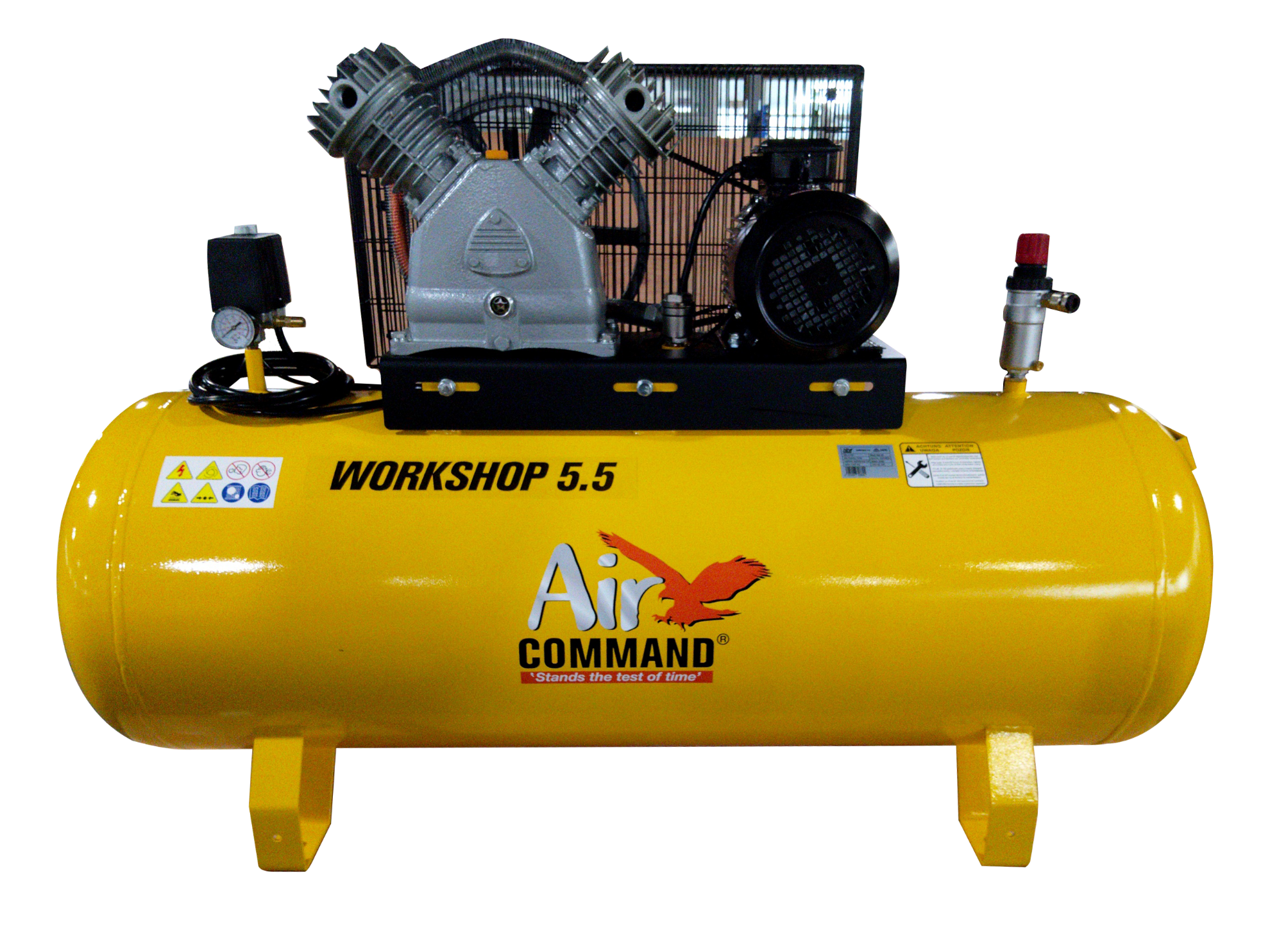

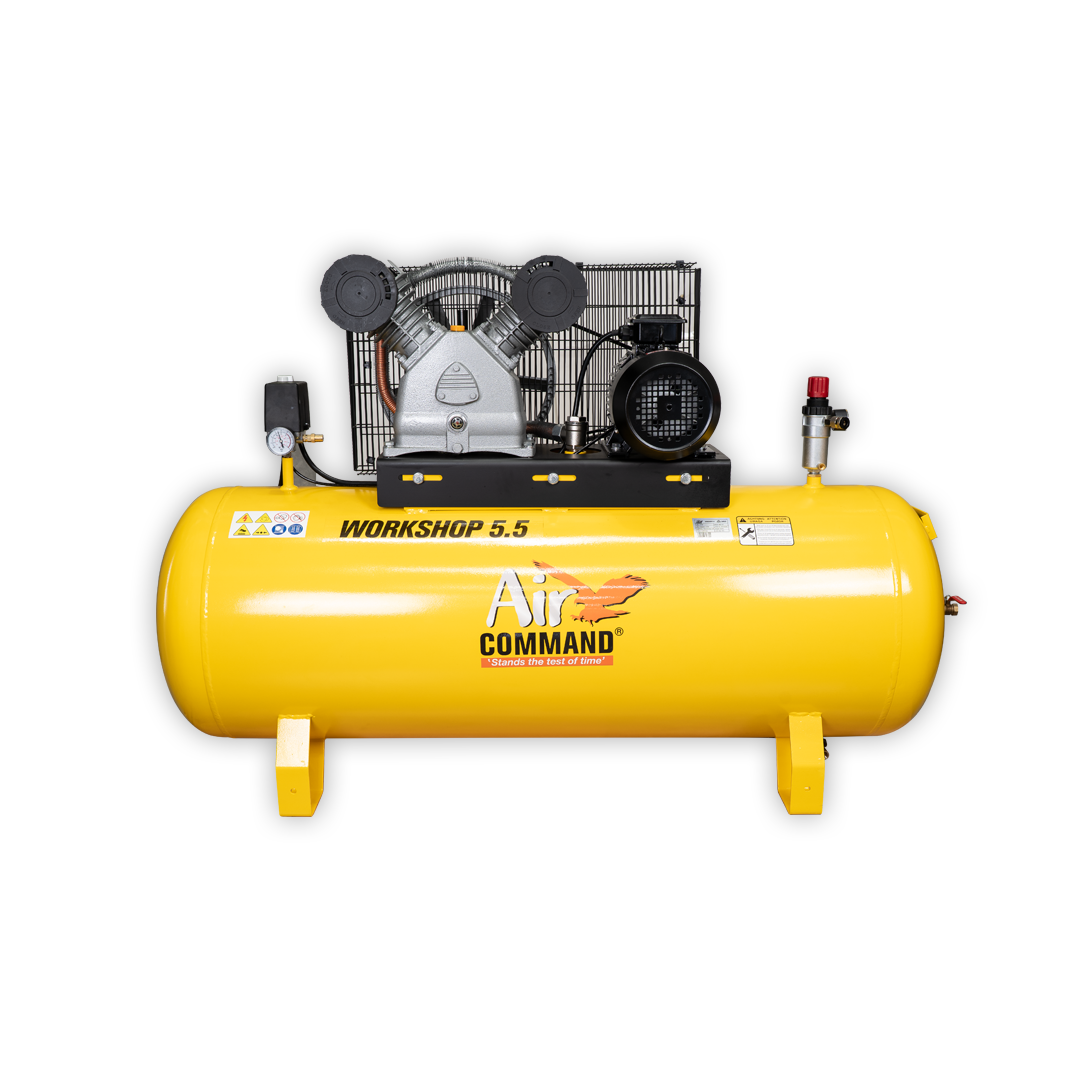

WS5.5CI

5.5HP 300L Three-Phase Workshop Air Compressor 400V

High-Power 5.5HP Motor – 690 L/min (24 CFM) pump displacement for heavy-duty air demands.
Exceptional Output – 434 L/min FAD at 145 PSI to run multiple tools with ease.
Massive 300L Tank – Maximum reserve for long, uninterrupted operation.
Built to Last – Cast iron 2-cylinder pump for durability and reliability.
Versatile Air Access – Built-in filter/regulator with quick-connectors & ½" outlet ball valve.
3ph 400V 16A Power Supply Requirements

Motor: 4kW / 5.5HP 3 Phase 400V IE2

Receiver Size: 300L

Pump Displacement 690L/min, 24cfm

Maximum Working Pressure: 10bar / 145PSI

Attribute name	Attribute value
Dimensions	160 x 50 x 106cm (Lx W x H)
Weight	209kg
Pump Type	V' 2 Cylinder Cast Iron Single Stage
Motor:	4kW / 5.5HP 3 Phase 400V IE2
Receiver Size:	300L
Power Supply Requirement	400V 3 Phase 16A
Pump Displacement	690L/min, 24cfm
FAD @ Working Pressure	434L/min
Maximum Working Pressure:	10bar / 145PSI
Pump Speed:	1150 RPM
Duty Cycle	60%
Drive Belt Specification:	A1524
Receiver End Port Thread Size:	G 1/2"
Sound Pressure Level	80dBA
