WS3.0CI

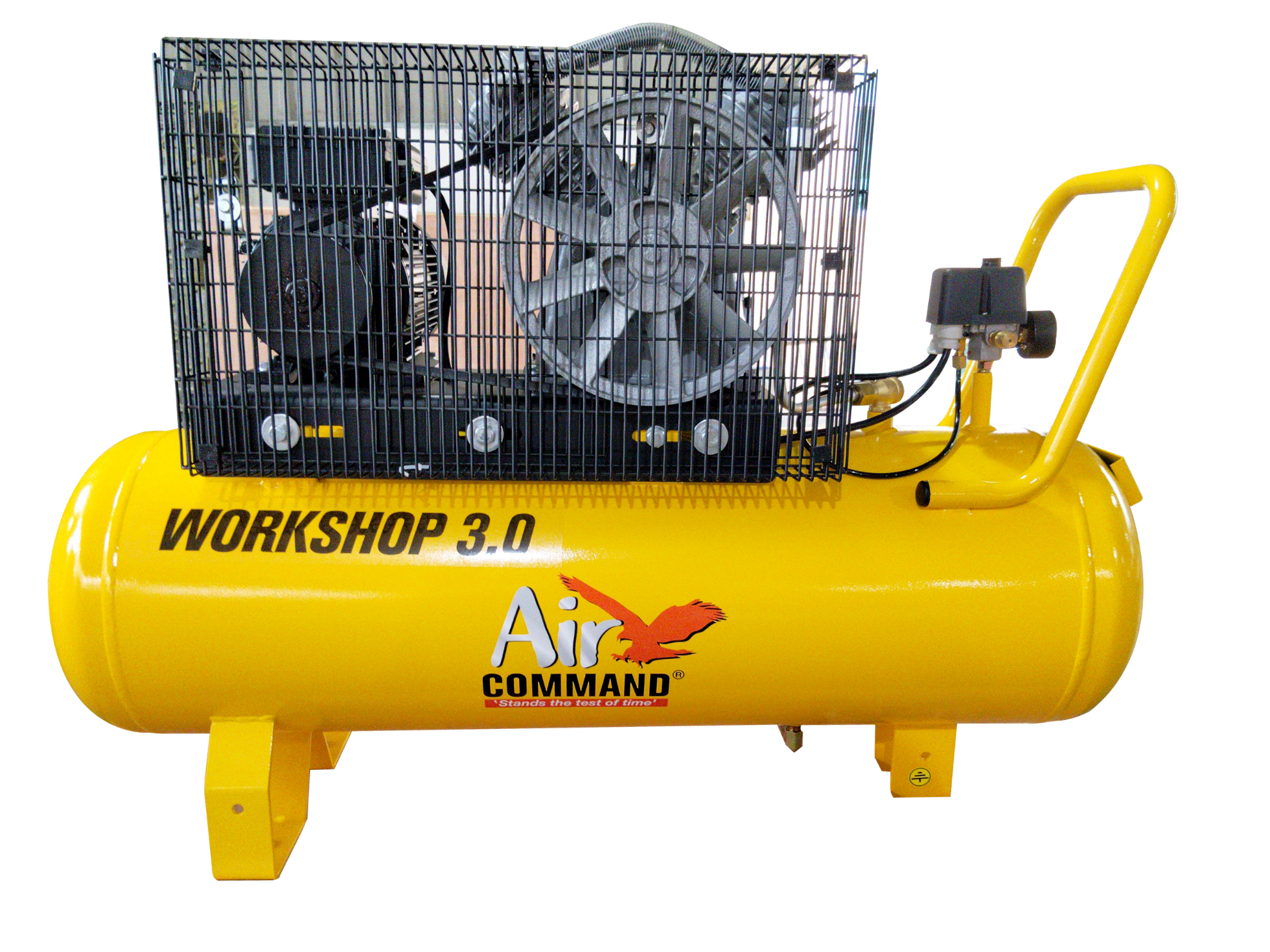

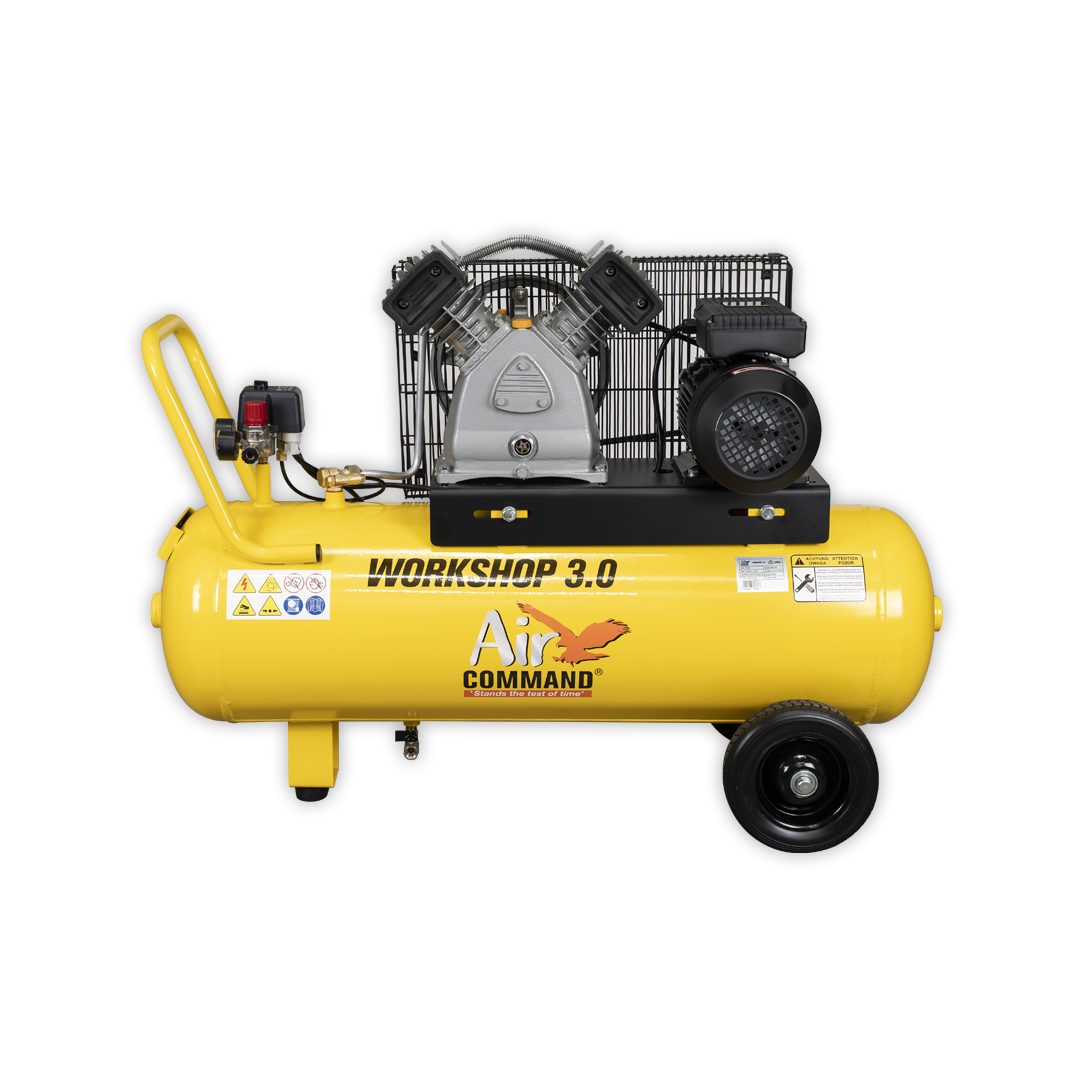

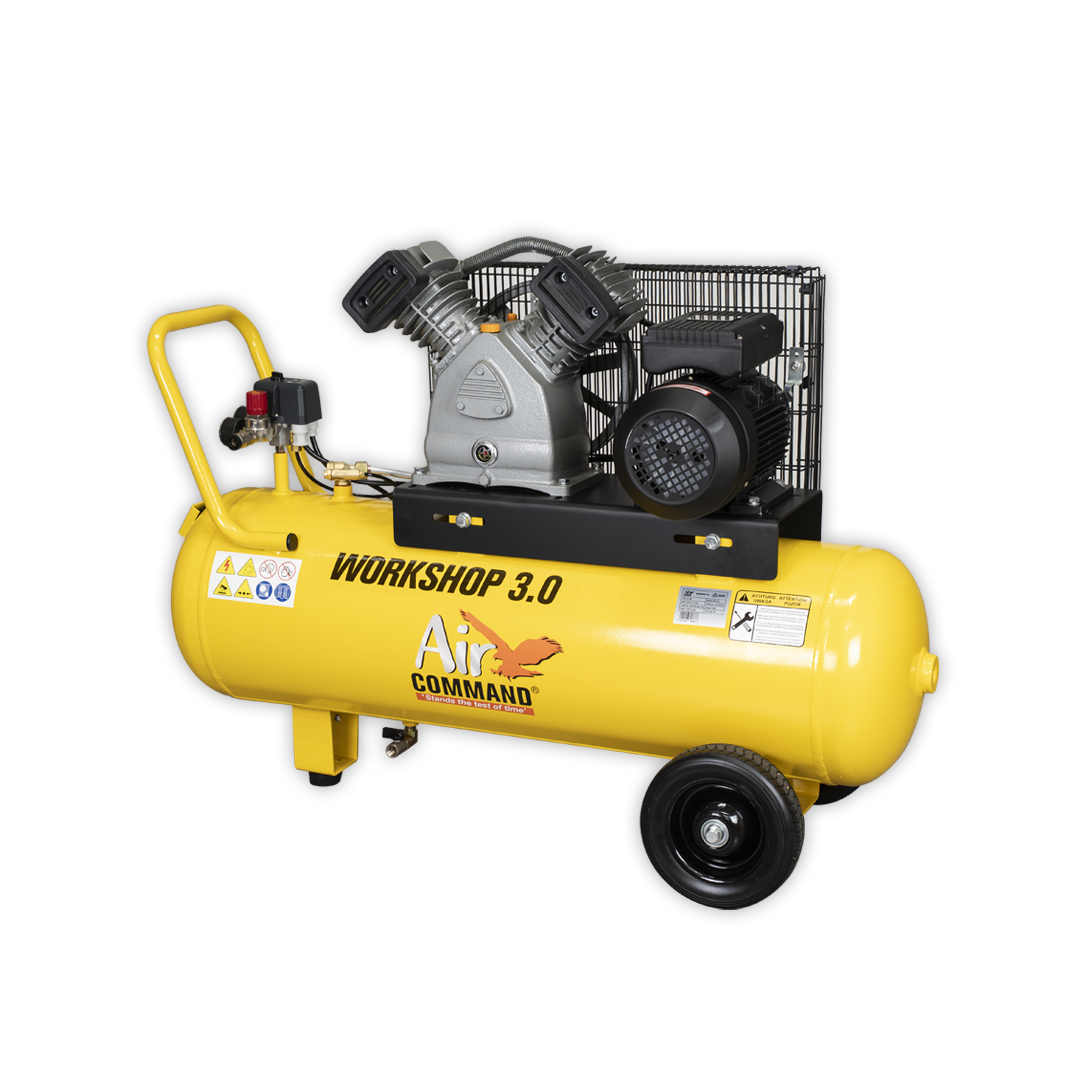

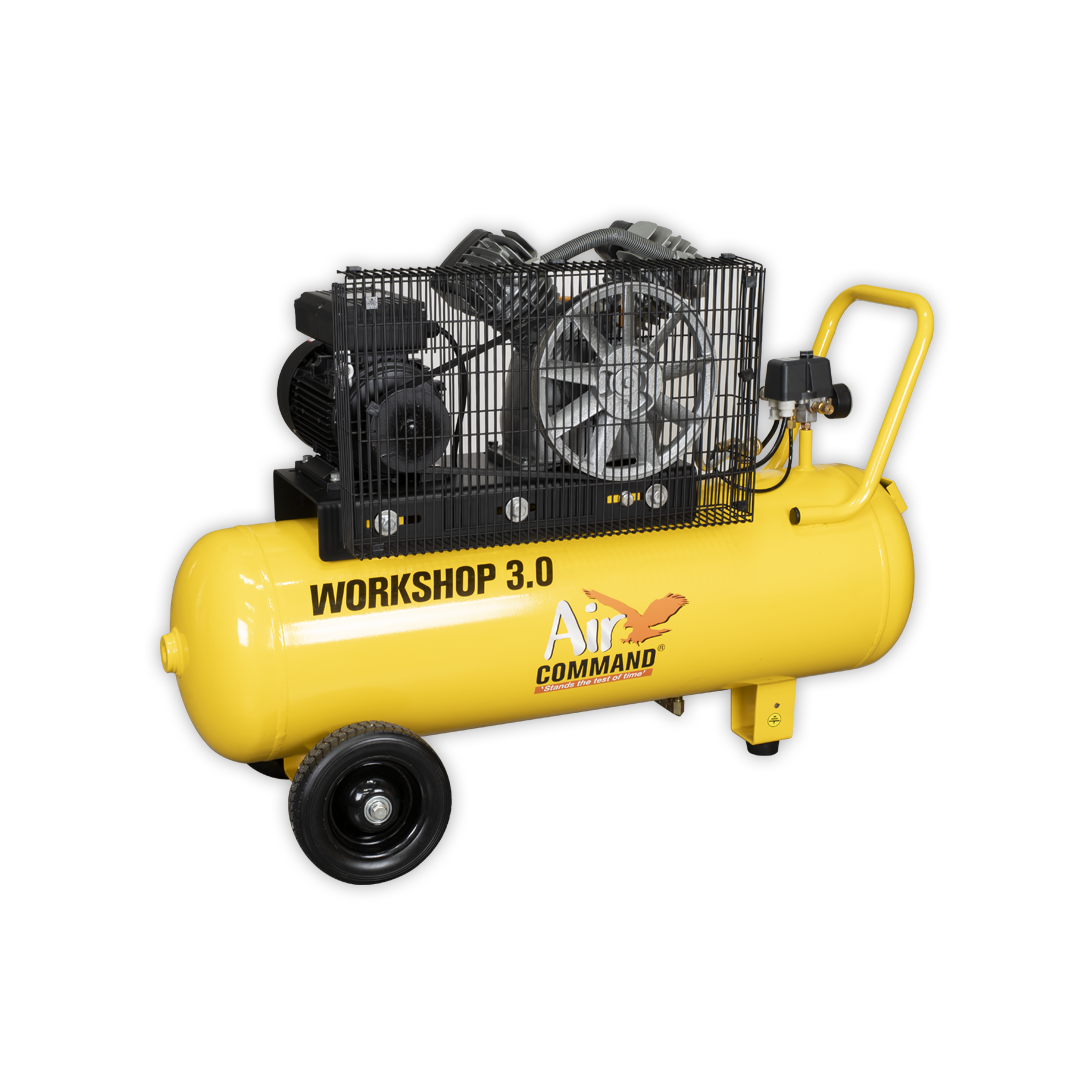

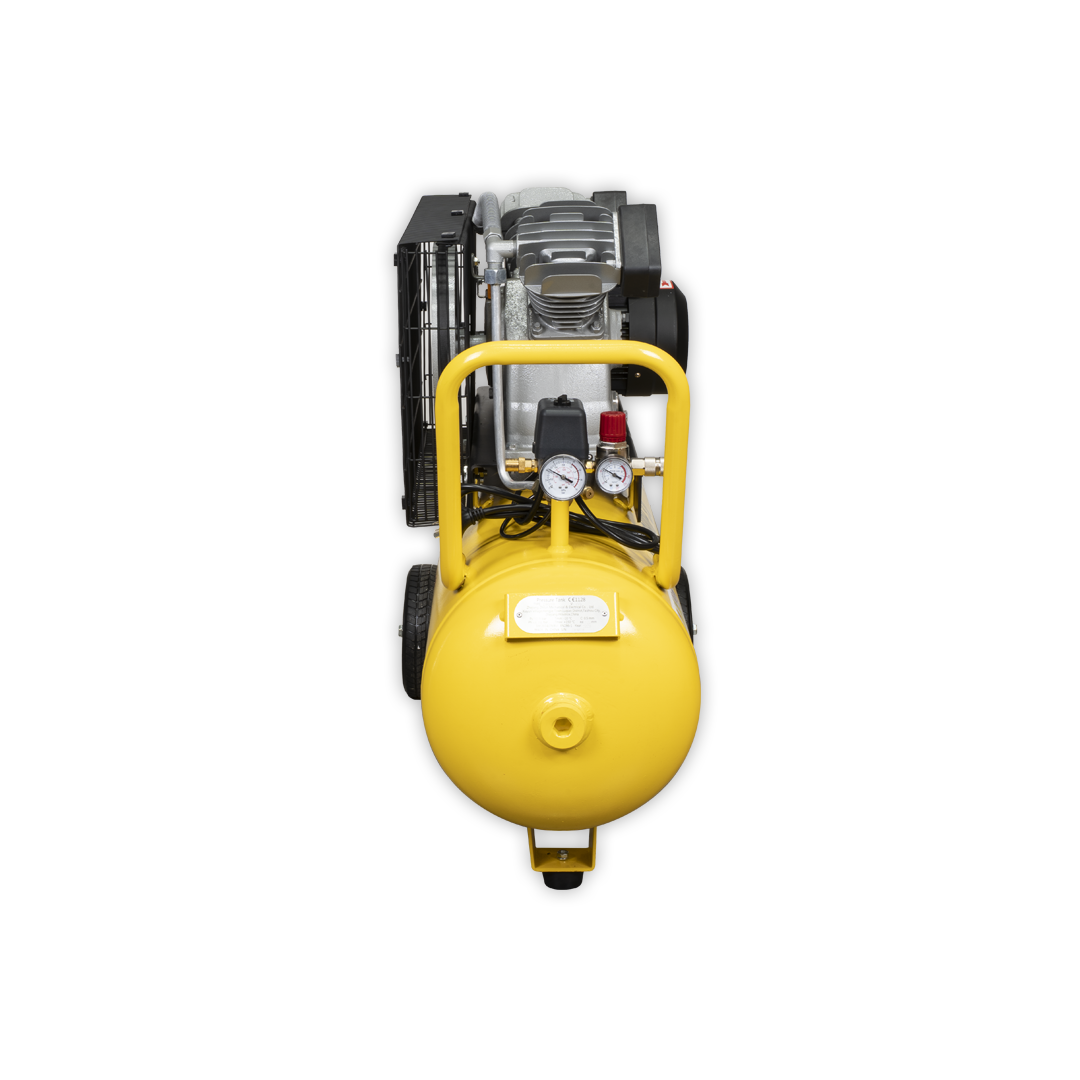

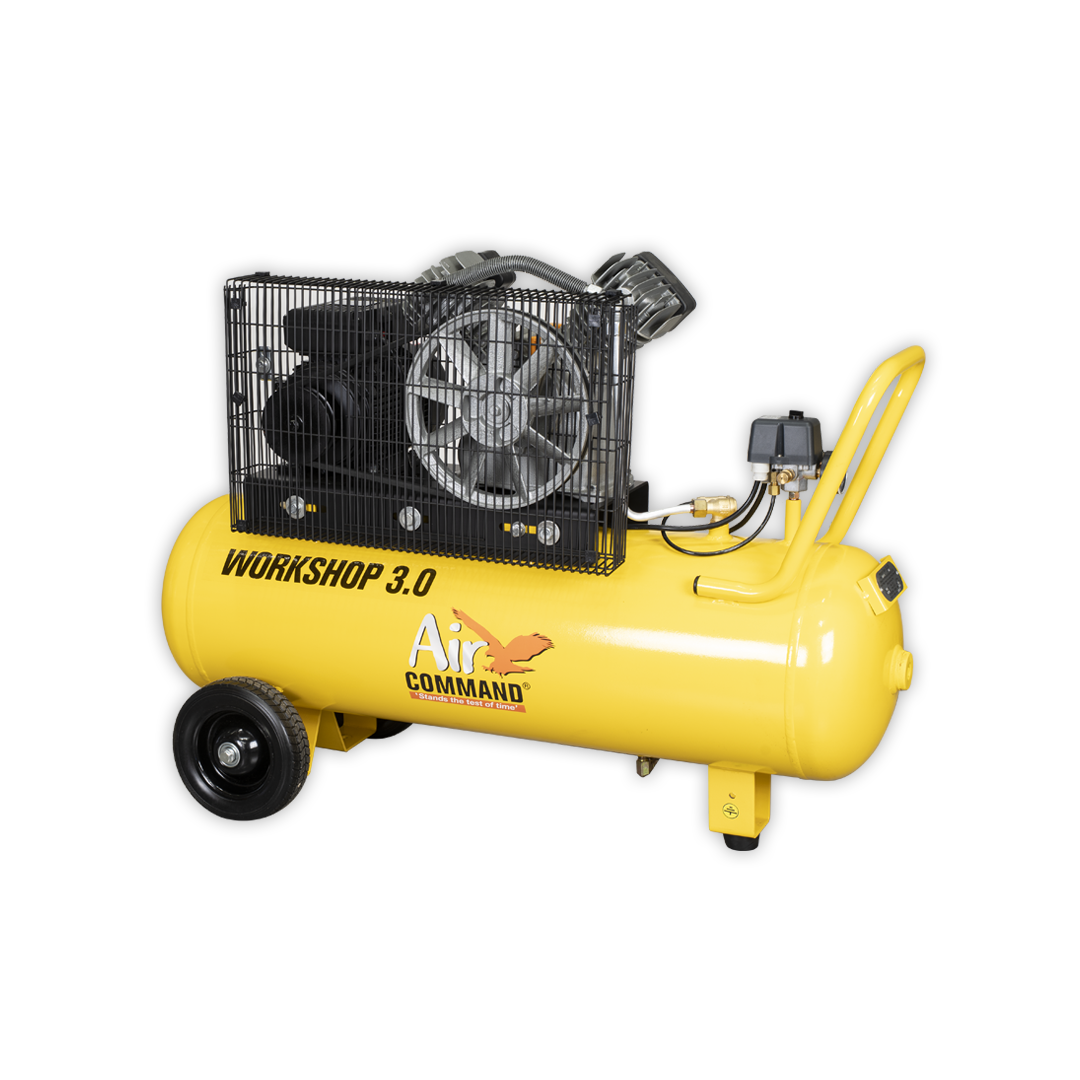

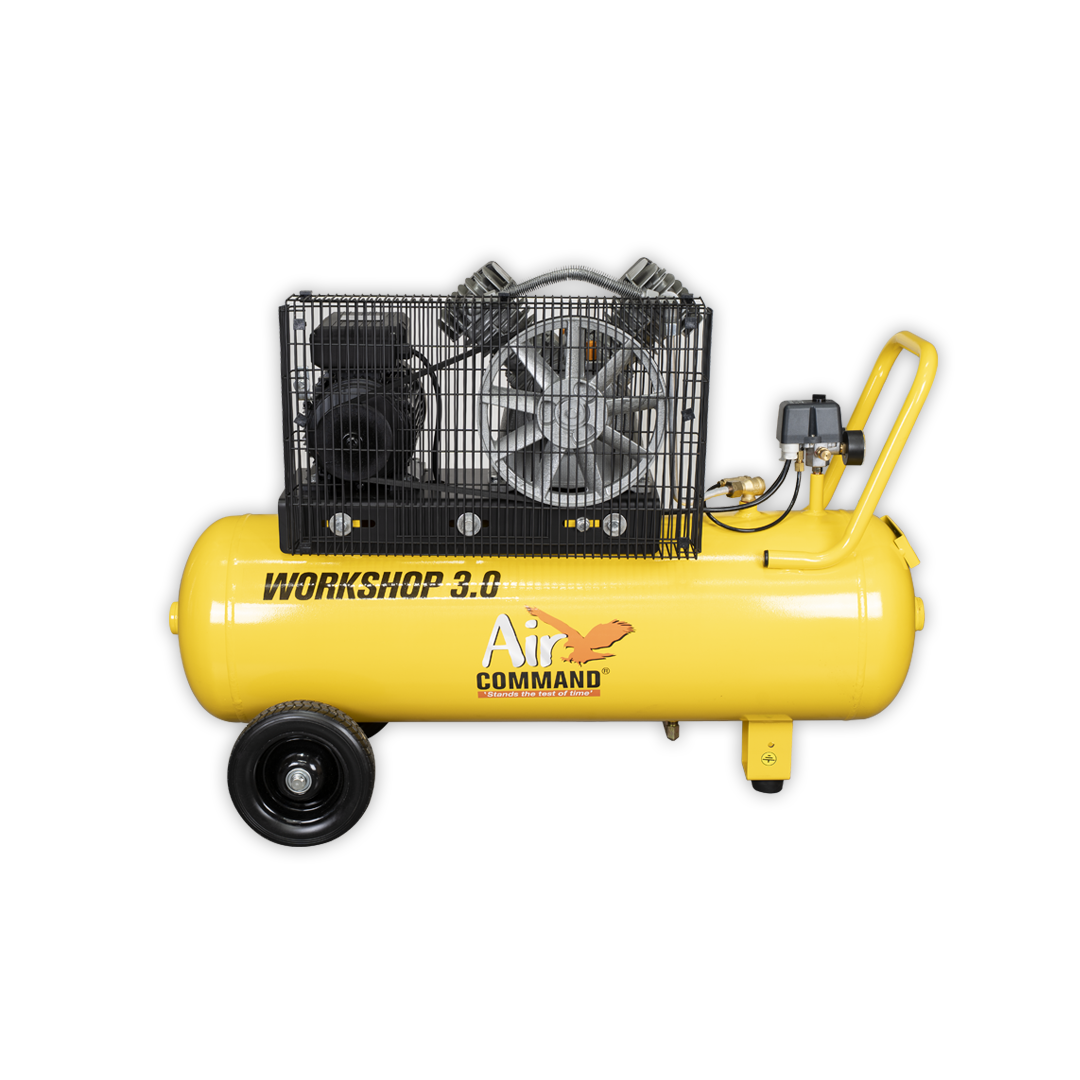

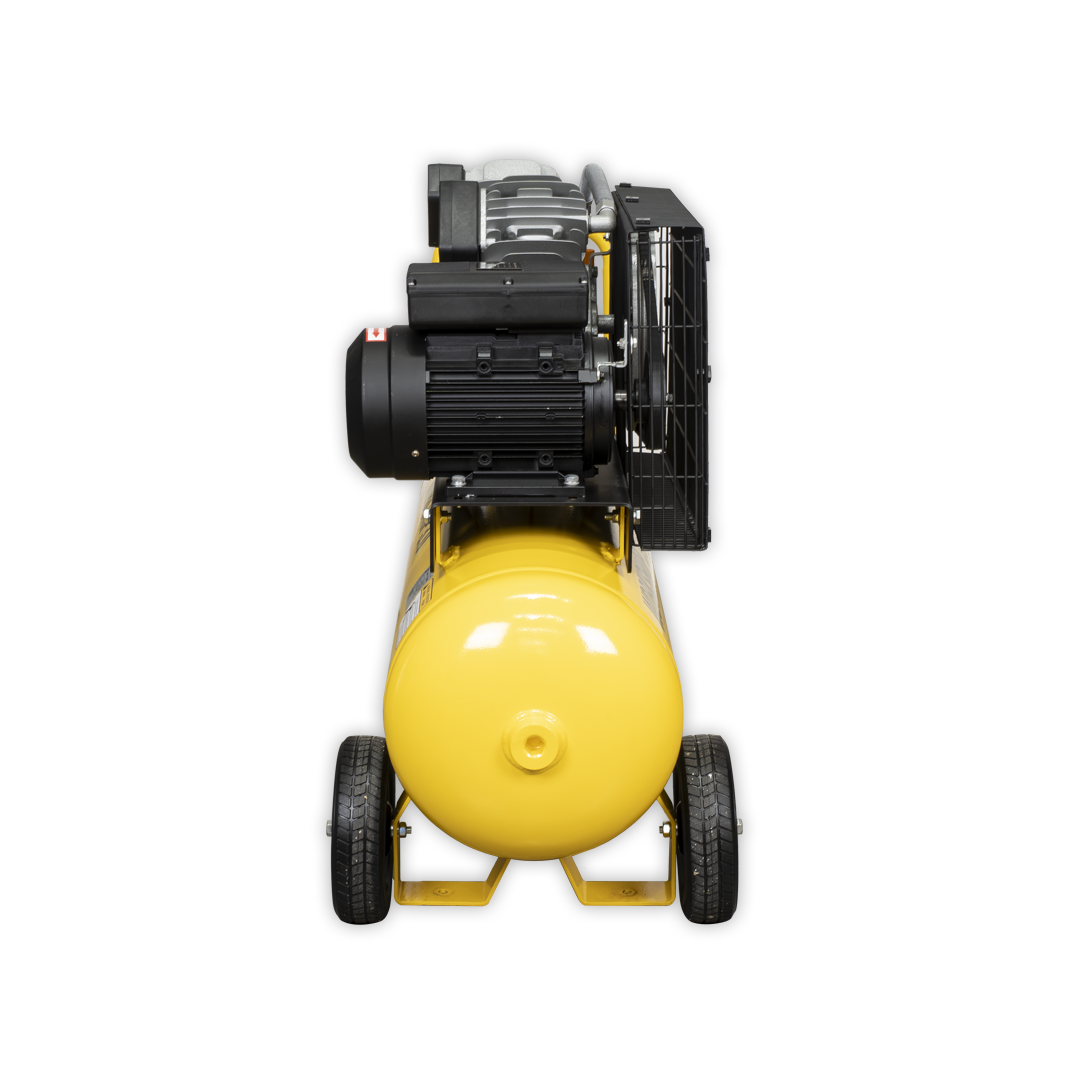

3HP 90L Workshop Air Compressor 230V

Powerful 3.0HP Motor – 370 L/min (12.7 CFM) pump displacement for strong, consistent air delivery.
High Output – 210 L/min FAD at 145 PSI for reliable tool performance.
Big 90L Tank – Longer run time, fewer refills.
Heavy-Duty Build – Cast iron 2-cylinder pump for durability and long service life.
Easy to Move – Robust wheels and rubber foot kit for portability and stability.
Single Phase 230V 15A Power Supply Requirements
Dimensions (LxWxH): 115 x 40 x 83cm
Come with wheels

Motor: 2.2kW / 3HP Single Phase 230V

Receiver Size: 90L

Pump Displacement 370L/min, 12.7cfm

Maximum Working Pressure: 10bar / 145PSI

Attribute name	Attribute value
Dimensions	115 x 40 x 83cm (L x W x H)
Weight	106kg
Pump Type	V' 2 Cylinder Cast Iron Single Stage
Motor:	2.2kW / 3HP Single Phase 230V
Receiver Size:	90L
Power Supply Requirement	230V Single Phase 15A
Pump Displacement	370L/min, 12.7cfm
Maximum Working Pressure:	10bar / 145PSI
Pump Speed:	1180 RPM
Duty Cycle	60%
Drive Belt Specification:	A1168
Receiver End Port Thread Size:	No Outlet on Receiver End
Sound Pressure Level	80dBA
