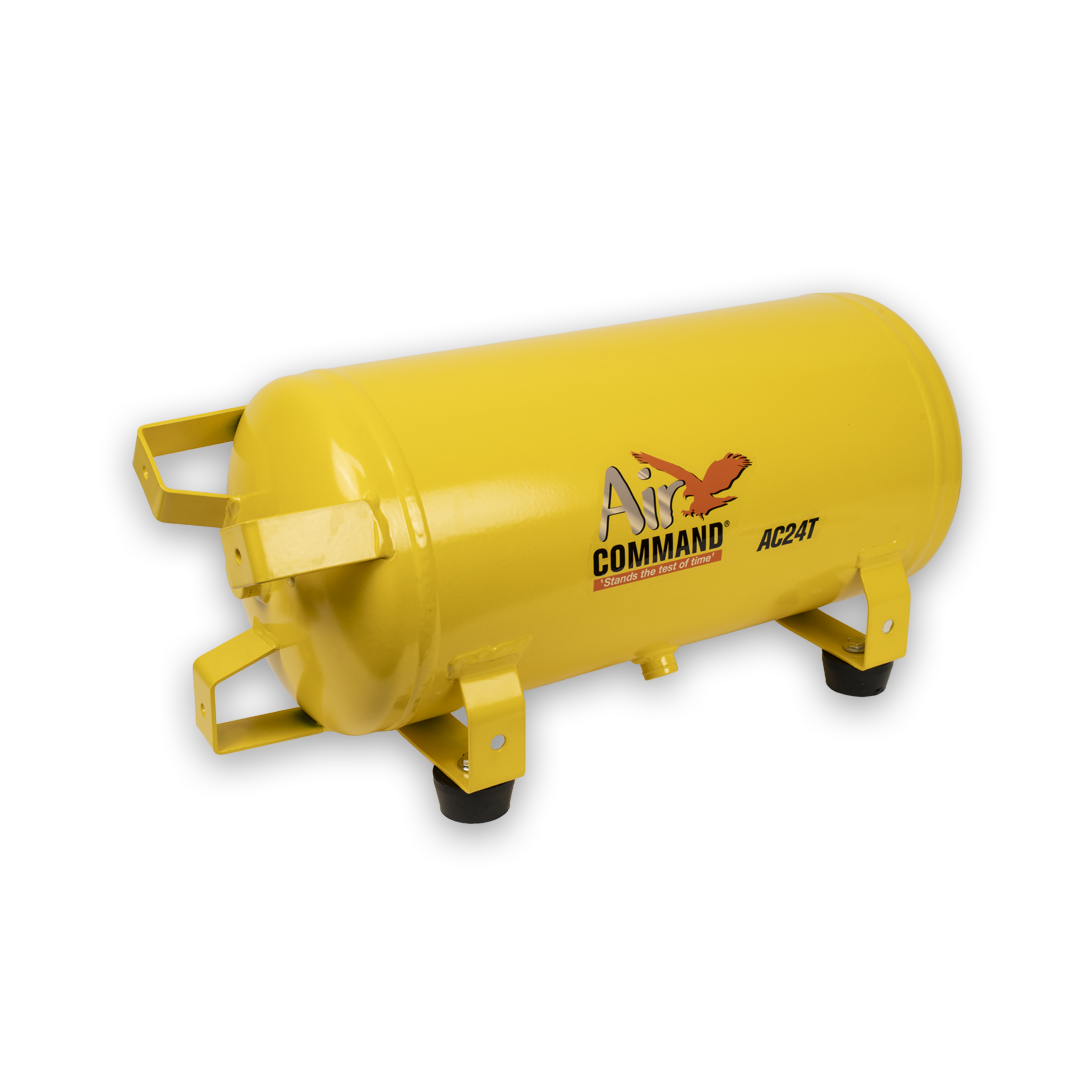

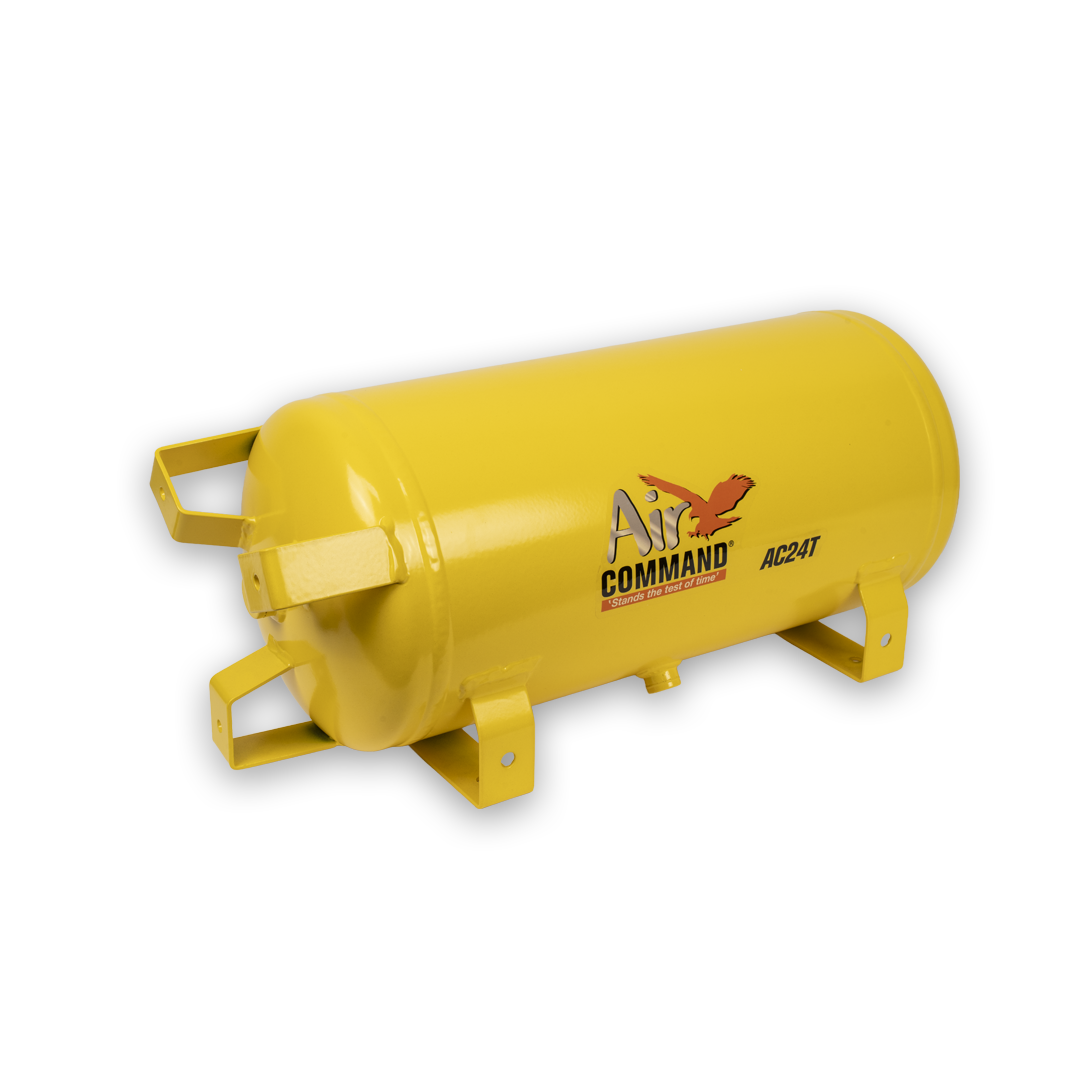

Air Command AC24T Universal Mount Compressed Air Tank 24L
The Air Command AC24T Universal Mount Compressed Air Tank is a compact 24L reserve tank built for tradespeople, workshops, and mobile operators needing consistent compressed air supply. Designed to integrate with most compressor systems, it increases stored air capacity, helping maintain pressure and reduce compressor cycling. With a universal mounting design, multiple outlet options, and a complete fittings package, it offers a reliable, easy-to-install solution for improving air system performance.
Key Features
Increased Air Capacity
The 24L tank provides additional stored compressed air, helping maintain stable pressure during tool use. This reduces compressor cycling, improving efficiency and extending equipment life in demanding applications.
Universal Mount Design

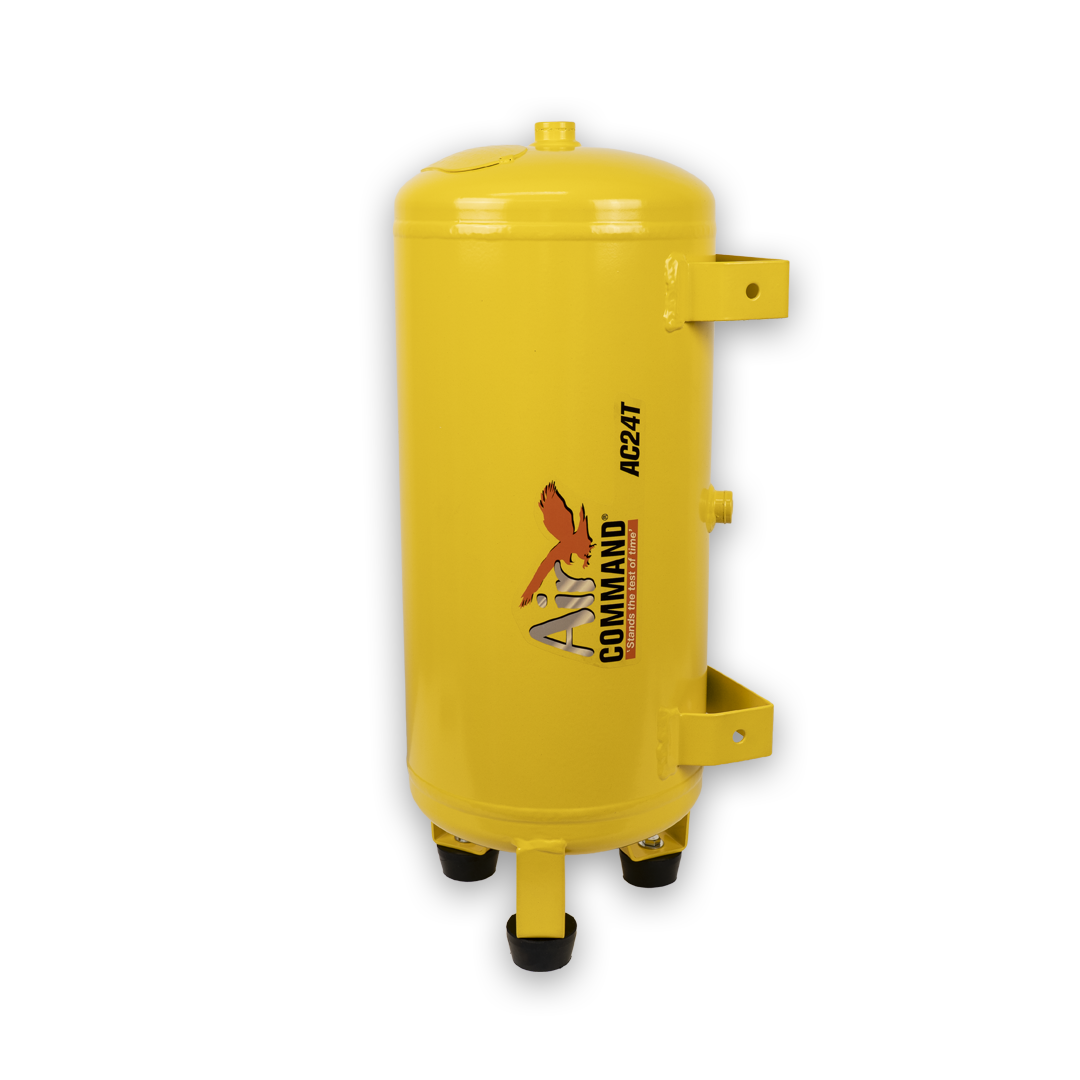

Engineered for flexible installation, the compact footprint (350mm x 530mm x 240mm) allows both vertical and horizontal mounting. This makes it ideal for workshop, vehicle, or fixed system setups.
Multiple Outlet Connections
Equipped with 2 x 1/2" BSP outlets and 1 x 3/8" BSP outlet, the tank supports versatile connections. It enables easy integration with various air tools, accessories, and system layouts.
Complete Fittings Package
Supplied with regulator, pressure gauge, safety valve, and fittings, the unit is ready to install. This reduces setup time and ensures controlled, safe operation from the outset.
Durable & Stable Construction
Fitted with four rubber feet, the tank minimises vibration and improves stability during operation. This enhances durability and protects mounting surfaces in high-use environments.
Certified Performance
CE certification ensures compliance with safety and quality standards. With a 160 PSI (11 Bar) design pressure, it delivers dependable performance across industrial applications.

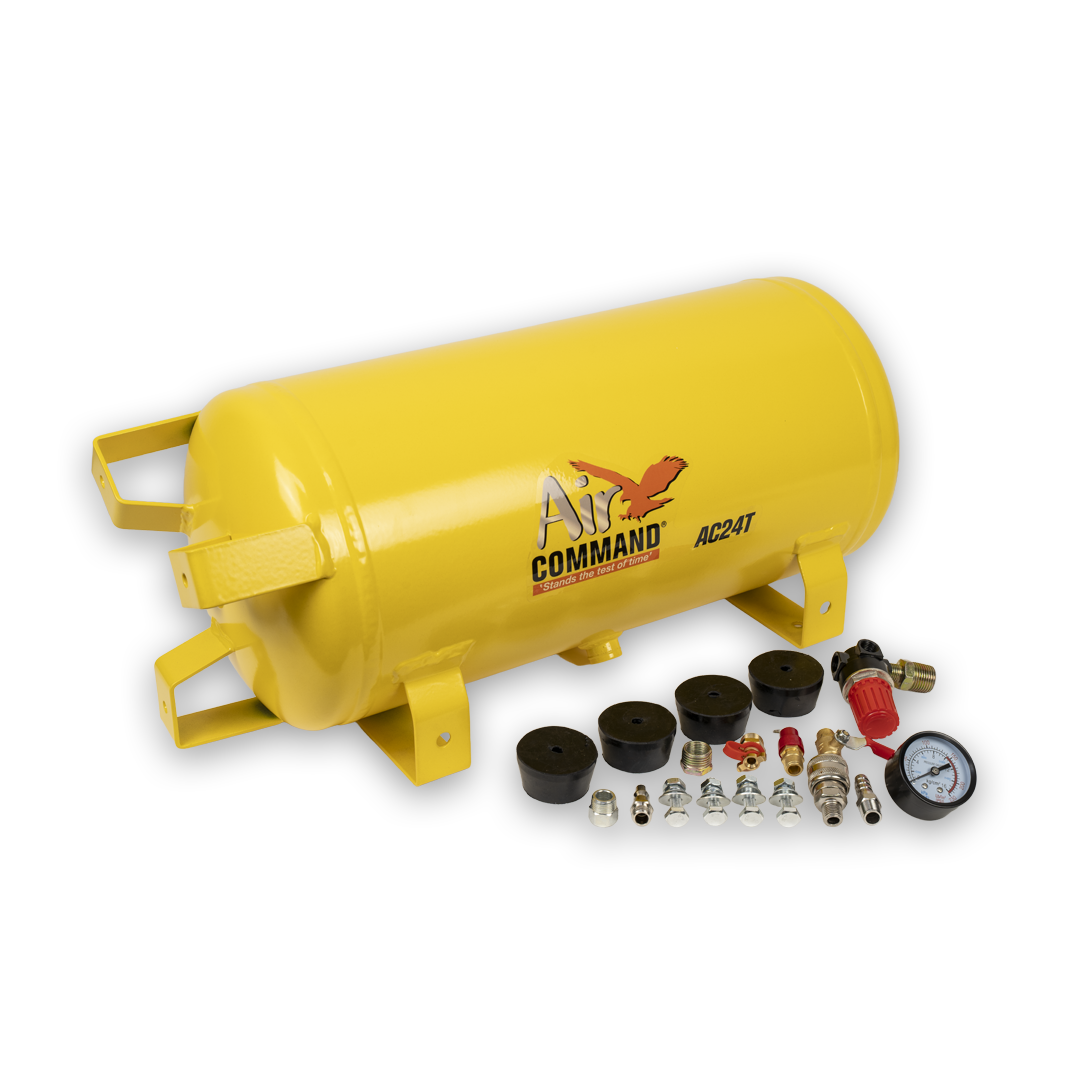

Includes:
Reserve Tank
4 x Rubber Feet
Safety Valve 10 Bar
Air Regulator with aro outlet & pressure gauge
Reducing Nipple 1/2-1/4 BSP
1x 1/4 bsp to hose tail fitting
1x 1/4 bsp to aro style plug fitting
1x Air on/off valve 1/4 bsp M/F
1x 3/8 bsp to 1/4 bsp bush
1/2 & 3/8 bsp bungs fitted to the side & rear outlet ports on tank
