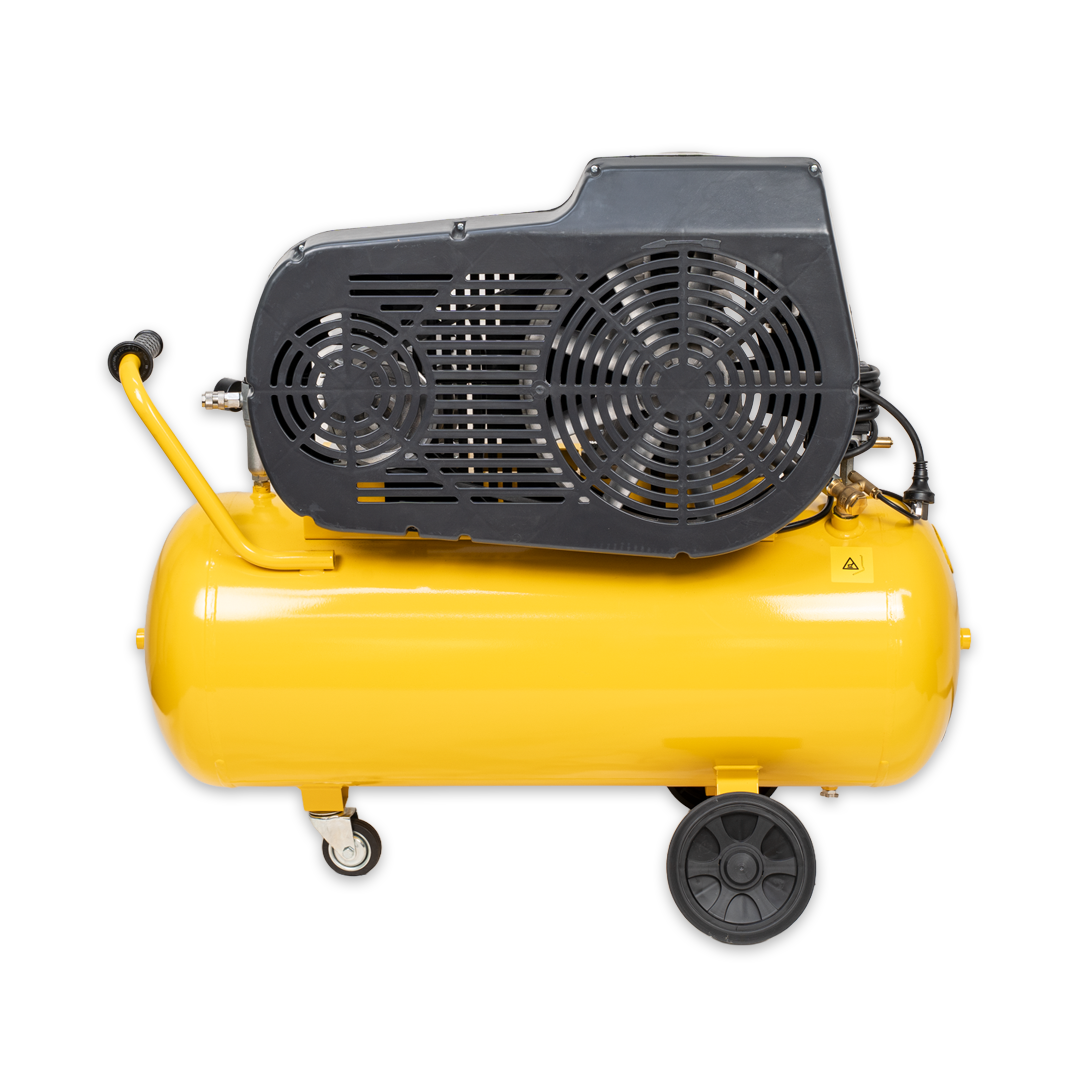

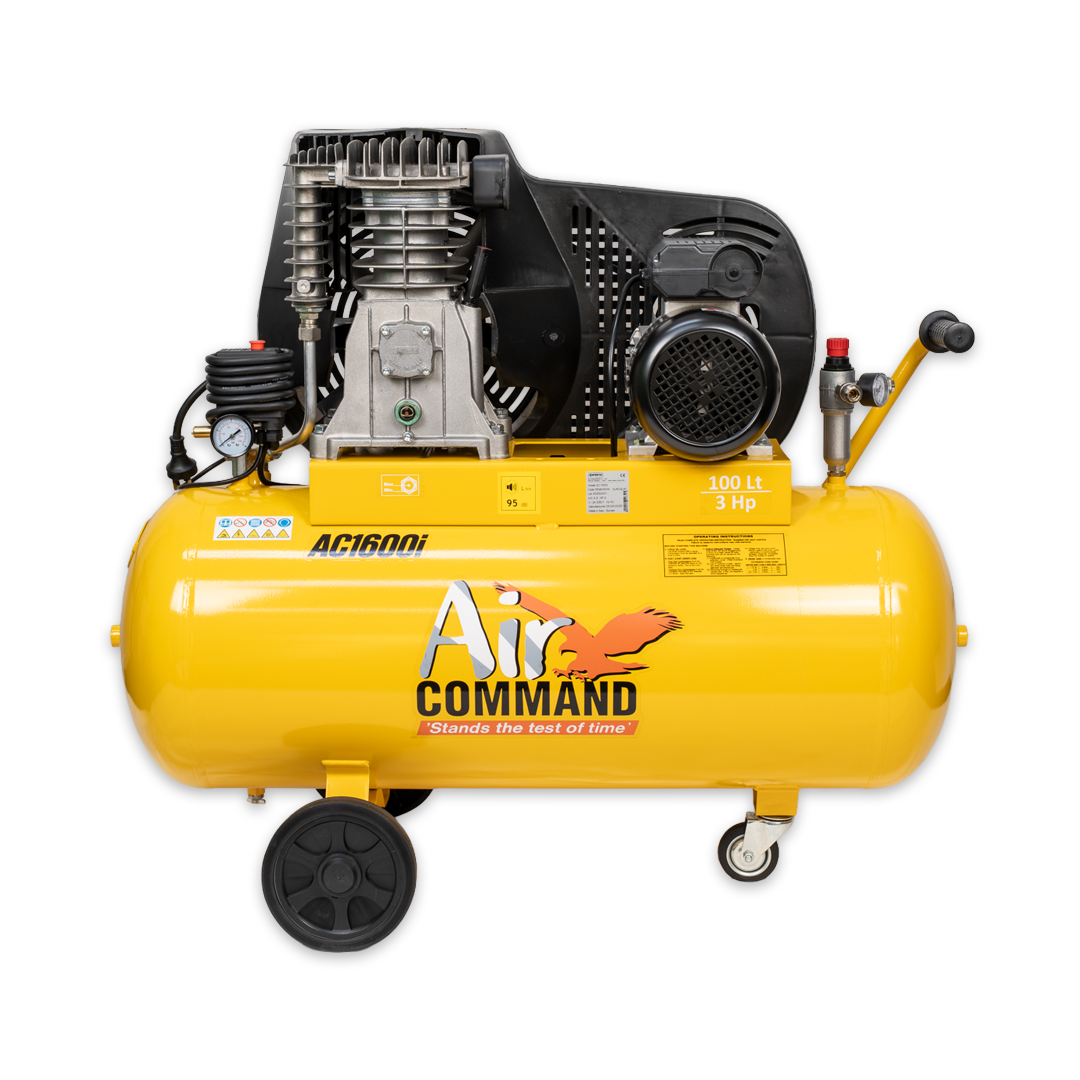

AC1600I

BELT DRIVE COMPRESSOR
  • Physically the largest single phase compressor, with a 100L air receiver
  • Heavy duty, oversized, slow revving, full shell bearing pump with a high airflow flywheel and built-in after cooler for cooler, drier air supply and longer life
  • Industrial Vemat electric motor with thermal overload protection. Large tank gives extra air storage and less stops/starts. Brilliant for the small factory where 3 phase power is not available
  • 15 amp plug for ultimate performance
  • Comes complete with Filter and Regulator
  • 100% Italian
  • 24 month warranty
Enquire Now Download Brochure

Product Highlights

Picture for category Motor Size: Motor Size: 3hp
Picture for category Air Delivery: Free Air Delivery: 11.9cfm, 337L/min
Best Displacement: 14.9cfm, 421L/min
Picture for category Tank capacity: Tank capacity: 100 Litres
Picture for category Maximum Pressure: Maximum Pressure: 145psi

Technical specifications

Attribute nameAttribute value
Motor Size:3hp
Best Displacement:14.9cfm, 421L/min
Free Air Delivery:11.9cfm, 337L/min
Maximum Pressure:145psi
Cylinders:2
Pump Speed:1100rpm
Tank capacity:100 Litres
Dimensions105 x 39 x 92cm
Weight60kg
